The Complete LangChain 1.x Architecture Guide for Tech Leads and Solution Architects
A Production-Ready Blueprint for Building Enterprise AI Agent Solutions
Last Updated: December 2025 | Reading Time: 25 minutes
Introduction
If you’re a tech lead or solution architect evaluating LangChain for your next AI agent project, this guide is for you. LangChain 1.x represents a significant maturation of the framework, shifting from experimental prototypes to production-ready agent systems. This isn’t just another tutorial—it’s a comprehensive architectural deep-dive designed to help you make informed decisions about building scalable AI solutions.
What You’ll Learn
- System Architecture: How LangChain 1.x components fit together
- Design Patterns: Production-proven patterns for agent systems
- Implementation Strategies: Real code examples for common use cases
- Operational Excellence: Observability, deployment, and scaling considerations
- Migration Insights: How 1.x differs from previous versions
Who This Guide Is For
- Tech Leads evaluating LangChain for production deployments
- Solution Architects designing AI-powered systems
- Engineering Managers planning AI agent initiatives
- Senior Engineers implementing agent-based solutions
Part 1: Understanding the LangChain 1.x Architecture
The Architectural Shift in 1.x
LangChain 1.x represents a fundamental rearchitecting around production requirements. The framework now prioritizes:
- Durable Execution: Built on LangGraph’s checkpoint system
- Simplified API Surface:
create_agent()as the primary interface - Middleware Architecture: Pluggable pre/post-processing
- Provider Agnosticism: 1000+ integrations maintained
- Production Readiness: Native observability and streaming
This shift mirrors the maturation we’ve seen in other infrastructure frameworks—moving from flexibility-first to reliability-first design.

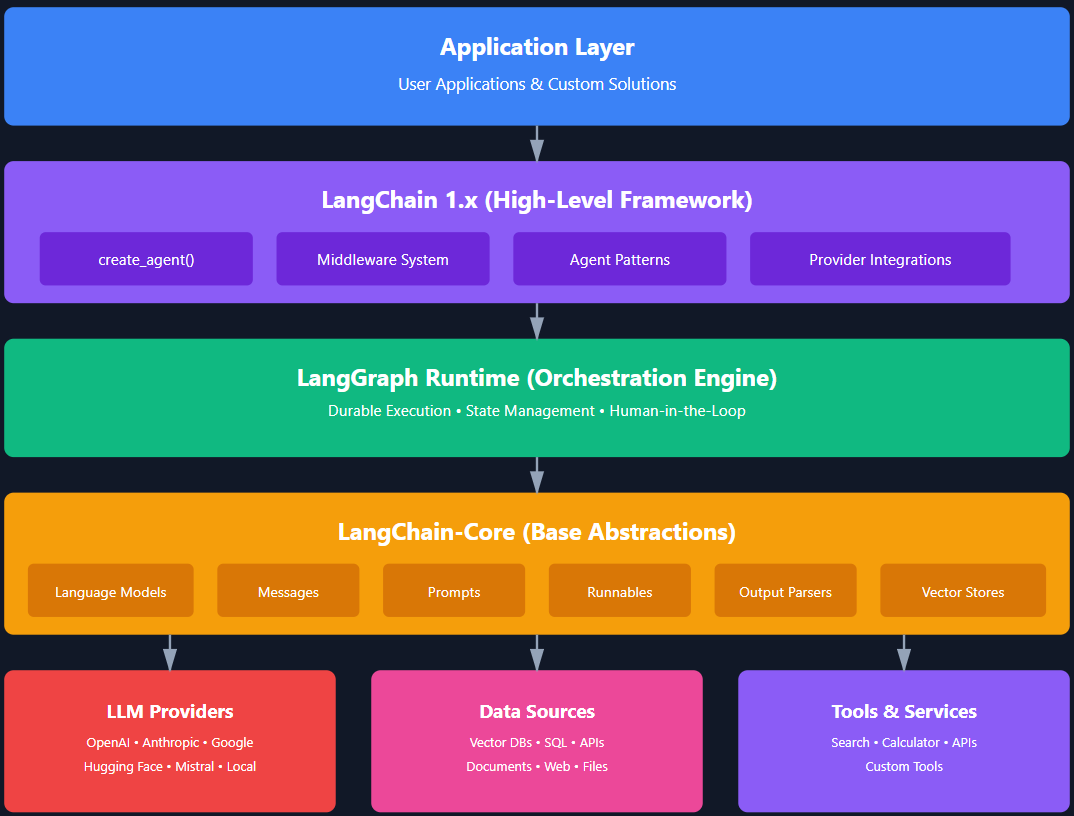

The Four-Layer Architecture
┌─────────────────────────────────────────────────────────┐
│ Application Layer │
│ Your Business Logic & Custom Solutions │
└────────────────────┬────────────────────────────────────┘
│
┌────────────────────▼────────────────────────────────────┐
│ LangChain 1.x Framework │
│ create_agent() • Middleware • Agent Patterns │
└────────────────────┬────────────────────────────────────┘
│
┌────────────────────▼────────────────────────────────────┐
│ LangGraph Runtime (Orchestration) │
│ State Management • Checkpointing • Execution Control │
└────────────────────┬────────────────────────────────────┘
│
┌────────────────────▼────────────────────────────────────┐
│ LangChain-Core (Base Abstractions) │
│ Models • Messages • Runnables • Tools • Parsers │
└────────────────────┬────────────────────────────────────┘
│
┌────────────────────▼────────────────────────────────────┐
│ External Integrations │
│ LLMs • Vector DBs • APIs • Tools • Data Sources │
└─────────────────────────────────────────────────────────┘
Why This Matters for Architects:
Each layer has clear responsibilities and interfaces. This separation enables:
- Independent scaling of concerns
- Easy substitution of components (swap OpenAI for Anthropic without code changes)
- Clear testing boundaries (mock at layer interfaces)
- Gradual adoption (start with core, add complexity as needed)
Part 2: Core Components Deep Dive
1. LangChain-Core: The Foundation
LangChain-Core provides the fundamental abstractions. Understanding these is critical for architectural decisions.
Language Models: Provider-Agnostic Interface
from langchain_openai import ChatOpenAI
from langchain_anthropic import ChatAnthropic
from langchain_google_genai import ChatGoogleGenerativeAI
# All models share the same interface
class BaseChatModel:
def invoke(messages: List[BaseMessage]) -> BaseMessage
def stream(messages: List[BaseMessage]) -> Iterator[BaseMessage]
def batch(messages: List[List[BaseMessage]]) -> List[BaseMessage]
Architectural Benefit: Your application code never depends on a specific provider. This is crucial for:
- Cost optimization: Switch providers based on pricing
- Reliability: Fallback to alternative providers
- Feature access: Use different models for different tasks
- Vendor negotiation: Maintain optionality
LCEL: The Composition Engine
LangChain Expression Language (LCEL) is the composability layer:
from langchain_core.runnables import RunnableSequence
# Declarative pipeline construction
chain = (
prompt_template
| model
| output_parser
)
# Automatic parallelization
parallel = RunnableParallel({
"summary": summarize_chain,
"sentiment": sentiment_chain,
"entities": entity_chain
})
Why This Matters: LCEL provides automatic streaming, batching, and retry logic. For architects, this means:
- Reduced boilerplate code
- Built-in performance optimizations
- Easier testing and debugging
- Type-safe composition
2. LangGraph: The Orchestration Runtime
LangGraph is the execution engine. It’s what makes LangChain 1.x production-ready.
State Management: Durable by Design
from typing import TypedDict, Annotated
from langgraph.graph import add_messages
class AgentState(TypedDict):
messages: Annotated[list, add_messages]
intermediate_steps: list
metadata: dict
Key Architectural Features:
- Checkpointing: Every state transition is saved
- Resumability: Restart from any checkpoint after failures
- Time Travel: Debug by replaying execution
- Branching: Fork conversations from any point
Production Implications:
from langgraph.checkpoint.postgres import PostgresSaver
# Production configuration
checkpointer = PostgresSaver.from_conn_string(
"postgresql://user:pass@db/langchain"
)
agent = create_agent(
model=model,
tools=tools,
checkpointer=checkpointer # Durable execution enabled
)
This architecture supports:
- Fault tolerance: Resume after crashes
- Debugging: Replay failed executions
- Compliance: Full audit trail
- Testing: Deterministic replay of scenarios

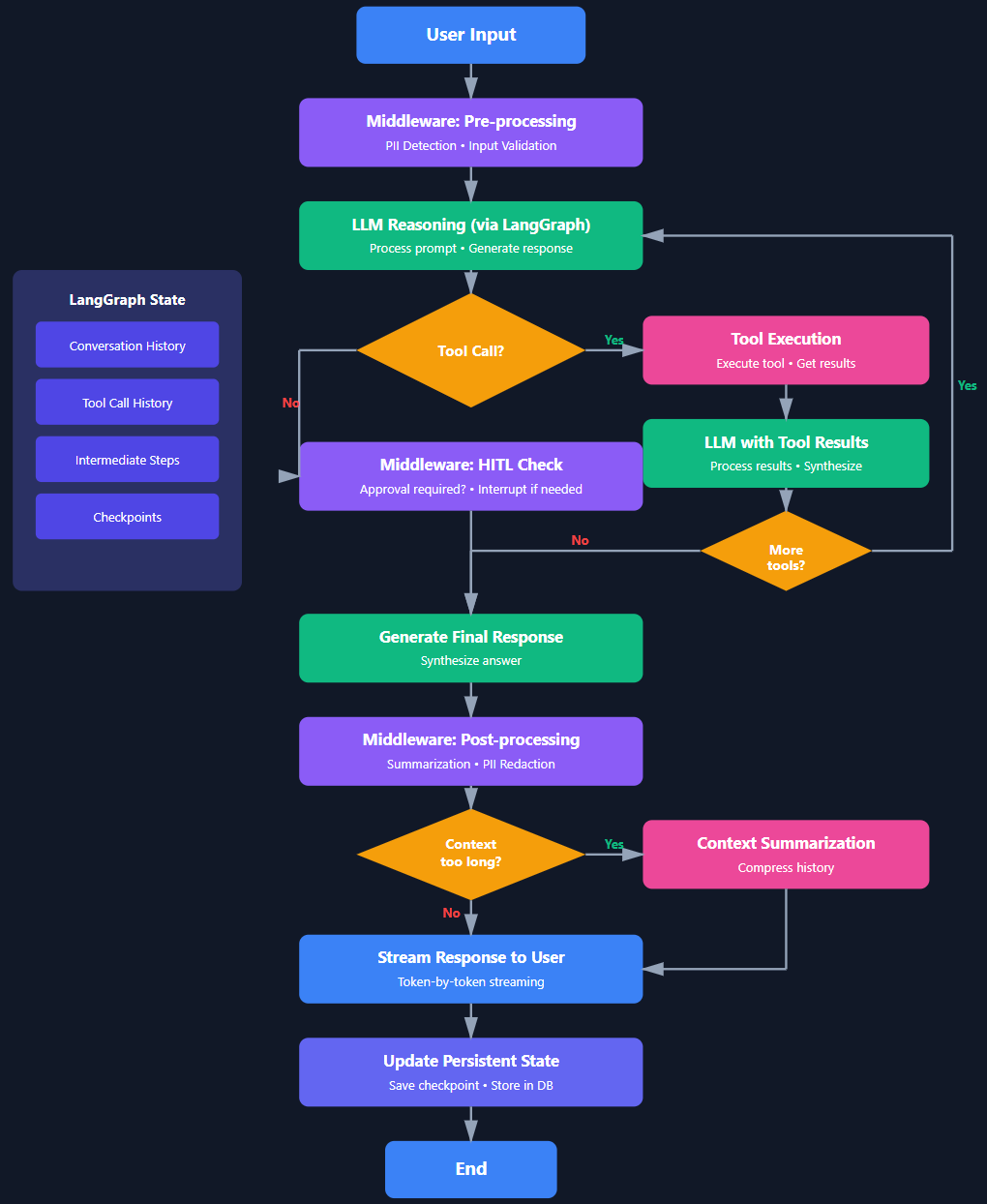

3. create_agent(): The Primary Interface
LangChain 1.x simplifies agent creation with a single function:
from langchain import create_agent
from langchain_openai import ChatOpenAI
from langgraph.checkpoint.postgres import PostgresSaver
agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[search_tool, calculator_tool, database_tool],
prompt="You are a data analyst assistant.",
middleware=[pii_middleware, logging_middleware],
checkpointer=PostgresSaver.from_conn_string(DATABASE_URL),
interrupt_before=["tools"], # Human-in-the-loop
max_iterations=25,
max_execution_time=120.0
)
Architectural Decisions Encoded:
- Model selection: Choose based on cost/performance tradeoffs
- Tool composition: What capabilities the agent has
- Middleware pipeline: Cross-cutting concerns (security, logging)
- State persistence: Where and how to store state
- Control flow: When to interrupt for approval
- Safety limits: Prevent runaway execution
Part 3: Production Architecture Patterns
Pattern 1: RAG (Retrieval-Augmented Generation)
RAG is the most common enterprise pattern. Here’s a production-ready implementation:
from langchain_openai import ChatOpenAI, OpenAIEmbeddings
from langchain_pinecone import PineconeVectorStore
from langchain_text_splitters import RecursiveCharacterTextSplitter
from langchain_core.tools import tool
class RAGSystem:
def __init__(self, index_name: str):
# Vector store for retrieval
self.vectorstore = PineconeVectorStore.from_existing_index(
index_name=index_name,
embedding=OpenAIEmbeddings()
)
# Create retrieval tool
@tool
def search_knowledge_base(query: str) -> str:
"""Search the company knowledge base."""
docs = self.vectorstore.similarity_search(query, k=5)
return "\n\n".join([
f"Document {i+1}:\n{doc.page_content}"
for i, doc in enumerate(docs)
])
# Create agent with retrieval capability
self.agent = create_agent(
model=ChatOpenAI(model="gpt-4", temperature=0),
tools=[search_knowledge_base],
prompt="""You are a knowledgeable assistant with access to
the company knowledge base. Always search the knowledge base
before answering questions. Cite sources when possible.""",
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
def query(self, question: str, thread_id: str) -> str:
"""Execute RAG query"""
config = {"configurable": {"thread_id": thread_id}}
result = self.agent.invoke(
{"messages": [{"role": "user", "content": question}]},
config
)
return result["messages"][-1].content
Architecture Considerations:
- Vector store selection: Pinecone for managed, Chroma for self-hosted
- Embedding strategy: Consider cost vs. quality tradeoffs
- Chunk size: Balance between context and relevance
- Retrieval tuning: Adjust k parameter based on use case
- Caching: Consider caching frequent queries
Cost Optimization:
# Use cheaper embeddings for large corpora
from langchain_community.embeddings import HuggingFaceEmbeddings
embeddings = HuggingFaceEmbeddings(
model_name="sentence-transformers/all-MiniLM-L6-v2"
) # Free, runs locally
# Use tiered model strategy
cheap_model = ChatOpenAI(model="gpt-3.5-turbo")
expensive_model = ChatOpenAI(model="gpt-4")
# Route based on complexity
agent = create_agent(
model=cheap_model, # Default to cheaper model
tools=[search_knowledge_base],
middleware=[ModelRoutingMiddleware(expensive_model)] # Upgrade when needed
)
Pattern 2: Multi-Agent Systems
For complex workflows, decompose into specialized agents:
class MultiAgentArchitecture:
def __init__(self):
# Specialized agents
self.researcher = self._create_researcher()
self.analyst = self._create_analyst()
self.writer = self._create_writer()
self.supervisor = self._create_supervisor()
def _create_researcher(self):
"""Agent for gathering information"""
return create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[web_search, document_reader, api_caller],
prompt="You are a research specialist. Gather comprehensive data.",
checkpointer=PostgresSaver.from_conn_string(
os.getenv("DB_URL"),
namespace="researcher"
)
)
def _create_analyst(self):
"""Agent for data analysis"""
return create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[python_repl, data_visualizer],
prompt="You are a data analyst. Analyze data and extract insights.",
checkpointer=PostgresSaver.from_conn_string(
os.getenv("DB_URL"),
namespace="analyst"
)
)
def _create_supervisor(self):
"""Orchestrating agent"""
@tool
def delegate_research(task: str) -> str:
"""Delegate to research agent"""
return self.researcher.invoke(
{"messages": [{"role": "user", "content": task}]},
{"configurable": {"thread_id": f"research_{hash(task)}"}}
)["messages"][-1].content
@tool
def delegate_analysis(task: str, data: str) -> str:
"""Delegate to analyst agent"""
return self.analyst.invoke(
{"messages": [{"role": "user", "content": f"{task}\n\nData:\n{data}"}]},
{"configurable": {"thread_id": f"analysis_{hash(task)}"}}
)["messages"][-1].content
return create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[delegate_research, delegate_analysis],
prompt="""You are a supervisor coordinating specialized agents.
Break down complex tasks and delegate to appropriate agents.""",
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
When to Use Multi-Agent:
✅ Complex workflows with distinct phases ✅ Different expertise required (research vs. analysis vs. writing) ✅ Need for parallel execution ✅ Want to optimize model selection per task
❌ Simple, linear workflows ❌ Real-time, low-latency requirements ❌ Limited budget (more agents = more LLM calls)
Pattern 3: Human-in-the-Loop for Compliance
Critical for regulated industries:
from langchain.middleware import HumanInTheLoopMiddleware
class ComplianceAgent:
def __init__(self):
# Define sensitive operations
self.sensitive_operations = [
"delete", "update_financial", "send_email",
"make_purchase", "change_permissions"
]
# Create approval middleware
hitl = HumanInTheLoopMiddleware(
approval_required=self.sensitive_operations,
timeout=300 # 5 minute approval window
)
# Create agent with HITL
self.agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=self._get_tools(),
middleware=[hitl],
interrupt_before=["tools"], # Pause before tool execution
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
def execute_with_approval(
self,
request: str,
user_id: str,
approver_callback: Callable
):
"""Execute request with approval workflow"""
config = {"configurable": {"thread_id": f"user_{user_id}"}}
# Start execution
events = list(self.agent.stream(
{"messages": [{"role": "user", "content": request}]},
config
))
# Check if approval needed
if self._is_interrupted(events):
# Extract pending action
pending_action = self._extract_action(events)
# Request approval
approved = approver_callback(pending_action)
if approved:
# Resume execution
result = self.agent.invoke(None, config)
return result["messages"][-1].content
else:
return "Action cancelled by approver"
# No approval needed, return result
return events[-1]["messages"][-1].content
Compliance Benefits:
- Audit trail: Every action logged with approval status
- Risk mitigation: Prevent unauthorized operations
- Flexibility: Different approval chains per operation type
- User experience: Async approval via webhooks/queues
Part 4: Middleware Architecture
Middleware is where you implement cross-cutting concerns. Think of it as the interceptor pattern for LLM interactions.
The Middleware Pipeline
from langchain.middleware import BaseMiddleware
class BaseMiddleware:
def pre_process(
self,
messages: List[BaseMessage],
metadata: dict
) -> List[BaseMessage]:
"""Transform input before LLM"""
pass
def post_process(
self,
response: BaseMessage,
metadata: dict
) -> BaseMessage:
"""Transform output after LLM"""
pass
Essential Production Middleware
1. PII Detection & Redaction
from langchain.middleware import PIIMiddleware
class ProductionPIIMiddleware(BaseMiddleware):
"""Enterprise-grade PII protection"""
def __init__(self, mode: str = "redact"):
self.detector = PIIDetector(
entities=[
"EMAIL", "PHONE", "SSN", "CREDIT_CARD",
"IP_ADDRESS", "PERSON", "LOCATION", "DATE_OF_BIRTH"
],
custom_patterns={
"EMPLOYEE_ID": r"EMP-\d{6}",
"CUSTOMER_ID": r"CUST-[A-Z0-9]{8}"
}
)
self.mode = mode # "redact", "block", or "encrypt"
def pre_process(self, messages, metadata):
"""Scan input for PII"""
for message in messages:
detections = self.detector.scan(message.content)
if detections and self.mode == "block":
raise PIIViolationError(
f"PII detected in input: {detections}"
)
elif detections and self.mode == "redact":
message.content = self.detector.redact(message.content)
# Log for compliance
metadata["pii_scan_result"] = detections
return messages
Why This Matters:
- GDPR compliance requires PII protection
- HIPAA mandates PHI safeguards
- Reduces liability from data leaks
- Builds customer trust
2. Cost Tracking & Budgets
class CostTrackingMiddleware(BaseMiddleware):
"""Track and enforce LLM costs"""
def __init__(self, budget_per_user: float = 10.0):
self.costs = {} # user_id -> cost
self.budget_per_user = budget_per_user
def pre_process(self, messages, metadata):
user_id = metadata.get("user_id")
current_cost = self.costs.get(user_id, 0)
if current_cost >= self.budget_per_user:
raise BudgetExceededError(
f"User {user_id} exceeded budget: ${current_cost:.2f}"
)
return messages
def post_process(self, response, metadata):
# Calculate cost
tokens = metadata.get("token_usage", {})
cost = self._calculate_cost(tokens)
# Update tracking
user_id = metadata.get("user_id")
self.costs[user_id] = self.costs.get(user_id, 0) + cost
# Add to response metadata
metadata["cost"] = cost
metadata["remaining_budget"] = self.budget_per_user - self.costs[user_id]
return response
def _calculate_cost(self, tokens: dict) -> float:
"""Calculate cost based on token usage"""
# GPT-4 pricing (example)
input_cost = tokens.get("prompt_tokens", 0) * 0.00003
output_cost = tokens.get("completion_tokens", 0) * 0.00006
return input_cost + output_cost
3. Context Window Management
class SmartSummarizationMiddleware(BaseMiddleware):
"""Intelligently manage context length"""
def __init__(self, max_tokens: int = 4000):
self.max_tokens = max_tokens
self.summarizer = ChatOpenAI(model="gpt-3.5-turbo") # Cheaper model for summaries
def pre_process(self, messages, metadata):
token_count = self._count_tokens(messages)
if token_count <= self.max_tokens:
return messages
# Keep system message and recent messages
system_msg = messages[0] if messages[0].type == "system" else None
recent_msgs = messages[-5:] # Keep last 5 exchanges
old_msgs = messages[1:-5] if len(messages) > 6 else []
if old_msgs:
# Summarize old conversation
summary = self._generate_summary(old_msgs)
return [
system_msg,
SystemMessage(content=f"[Previous conversation summary: {summary}]"),
*recent_msgs
]
return messages
def _generate_summary(self, messages: List[BaseMessage]) -> str:
"""Generate conversation summary"""
conversation_text = "\n".join([
f"{msg.type}: {msg.content}" for msg in messages
])
summary_prompt = f"""Summarize this conversation concisely,
preserving key facts and context:
{conversation_text}
Summary:"""
return self.summarizer.invoke(summary_prompt).content
Composing Middleware
# Production middleware stack
agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=tools,
middleware=[
PIIMiddleware(mode="redact"), # 1. Security first
CostTrackingMiddleware(budget=50.0), # 2. Cost control
LoggingMiddleware(log_level="INFO"), # 3. Observability
SmartSummarizationMiddleware(), # 4. Context management
HumanInTheLoopMiddleware( # 5. Compliance
approval_required=["delete", "update"]
)
],
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
Execution Order:
Request: Input → PII → Cost → Log → Summary → HITL → LLM
Response: LLM → HITL → Summary → Log → Cost → PII → Output
Part 5: Operational Excellence
Observability: The Production Necessity
LangSmith Integration
import os
# Enable LangSmith tracing
os.environ["LANGCHAIN_TRACING_V2"] = "true"
os.environ["LANGCHAIN_API_KEY"] = "your-api-key"
os.environ["LANGCHAIN_PROJECT"] = "production-agents"
# All agent executions automatically traced
agent = create_agent(model=model, tools=tools)
# View traces at smith.langchain.com
What You Get:
- Complete execution traces
- Token usage and costs
- Tool calls and results
- Error stack traces
- Performance metrics
- User feedback collection
Custom Metrics
from langchain_core.callbacks import BaseCallbackHandler
from prometheus_client import Counter, Histogram
class MetricsCallback(BaseCallbackHandler):
"""Export metrics to Prometheus"""
def __init__(self):
self.llm_calls = Counter('agent_llm_calls_total', 'Total LLM calls')
self.tool_calls = Counter('agent_tool_calls_total', 'Total tool calls', ['tool_name'])
self.latency = Histogram('agent_latency_seconds', 'Agent response latency')
self.errors = Counter('agent_errors_total', 'Total errors', ['error_type'])
def on_llm_start(self, serialized, prompts, **kwargs):
self.llm_calls.inc()
def on_tool_start(self, serialized, input_str, **kwargs):
tool_name = serialized.get("name", "unknown")
self.tool_calls.labels(tool_name=tool_name).inc()
def on_llm_error(self, error, **kwargs):
error_type = type(error).__name__
self.errors.labels(error_type=error_type).inc()
# Use in agent
metrics = MetricsCallback()
agent = create_agent(
model=ChatOpenAI(model="gpt-4", callbacks=[metrics]),
tools=tools
)
Deployment Architectures
Option 1: LangServe (Recommended)
from fastapi import FastAPI
from langserve import add_routes
from langchain import create_agent
app = FastAPI(
title="Agent API",
version="1.0",
description="Production agent API"
)
# Create agent
agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=tools,
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
# Add routes
add_routes(
app,
agent,
path="/agent",
enabled_endpoints=["invoke", "stream", "batch"],
playground_type="chat"
)
# Health check
@app.get("/health")
def health_check():
return {"status": "healthy"}
# Run with: uvicorn main:app --host 0.0.0.0 --port 8000 --workers 4
Option 2: Containerized Deployment
# Dockerfile
FROM python:3.11-slim
WORKDIR /app
# Install dependencies
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
# Copy application
COPY . .
# Non-root user
RUN useradd -m -u 1000 agent && chown -R agent:agent /app
USER agent
# Health check
HEALTHCHECK --interval=30s --timeout=10s --start-period=5s --retries=3 \
CMD curl -f http://localhost:8000/health || exit 1
EXPOSE 8000
CMD ["uvicorn", "main:app", "--host", "0.0.0.0", "--port", "8000"]
# docker-compose.yml
version: '3.8'
services:
agent:
build: .
ports:
- "8000:8000"
environment:
- OPENAI_API_KEY=${OPENAI_API_KEY}
- DATABASE_URL=postgresql://user:pass@db:5432/langchain
- LANGCHAIN_TRACING_V2=true
- LANGCHAIN_API_KEY=${LANGCHAIN_API_KEY}
depends_on:
db:
condition: service_healthy
restart: unless-stopped
deploy:
resources:
limits:
cpus: '2'
memory: 2G
db:
image: postgres:15-alpine
environment:
- POSTGRES_USER=user
- POSTGRES_PASSWORD=pass
- POSTGRES_DB=langchain
volumes:
- pgdata:/var/lib/postgresql/data
healthcheck:
test: ["CMD-SHELL", "pg_isready -U user"]
interval: 10s
timeout: 5s
retries: 5
redis:
image: redis:7-alpine
healthcheck:
test: ["CMD", "redis-cli", "ping"]
interval: 10s
volumes:
pgdata:
Option 3: Kubernetes Deployment
# k8s/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: langchain-agent
spec:
replicas: 3
selector:
matchLabels:
app: langchain-agent
template:
metadata:
labels:
app: langchain-agent
spec:
containers:
- name: agent
image: your-registry/langchain-agent:latest
ports:
- containerPort: 8000
env:
- name: DATABASE_URL
valueFrom:
secretKeyRef:
name: agent-secrets
key: database-url
- name: OPENAI_API_KEY
valueFrom:
secretKeyRef:
name: agent-secrets
key: openai-api-key
resources:
requests:
memory: "1Gi"
cpu: "500m"
limits:
memory: "2Gi"
cpu: "1000m"
livenessProbe:
httpGet:
path: /health
port: 8000
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /health
port: 8000
initialDelaySeconds: 5
periodSeconds: 5
---
apiVersion: v1
kind: Service
metadata:
name: langchain-agent
spec:
selector:
app: langchain-agent
ports:
- protocol: TCP
port: 80
targetPort: 8000
type: LoadBalancer
---
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
name: langchain-agent-hpa
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: langchain-agent
minReplicas: 3
maxReplicas: 10
metrics:
- type: Resource
resource:
name: cpu
target:
type: Utilization
averageUtilization: 70
Part 6: Performance & Cost Optimization
Strategy 1: Model Routing
Route requests to appropriate models based on complexity:
class ModelRouter(BaseMiddleware):
"""Route to appropriate model based on complexity"""
def __init__(self):
self.cheap_model = ChatOpenAI(model="gpt-3.5-turbo")
self.expensive_model = ChatOpenAI(model="gpt-4")
self.complexity_classifier = self._train_classifier()
def pre_process(self, messages, metadata):
# Classify query complexity
last_message = messages[-1].content
complexity = self.complexity_classifier.predict(last_message)
if complexity == "simple":
metadata["model_override"] = self.cheap_model
else:
metadata["model_override"] = self.expensive_model
return messages
Strategy 2: Caching
from langchain.cache import SQLiteCache
from langchain_core.globals import set_llm_cache
# Enable semantic caching
set_llm_cache(SQLiteCache(database_path=".langchain.db"))
# Cache hits are free!
model = ChatOpenAI(model="gpt-4", cache=True)
Strategy 3: Batch Processing
# Process multiple requests in one batch
inputs = [
{"messages": [{"role": "user", "content": query}]}
for query in user_queries
]
# Batch invoke (more efficient)
results = agent.batch(
inputs,
config={"max_concurrency": 5}
)
Cost Analysis Dashboard
class CostAnalyzer:
"""Analyze agent costs and optimize"""
def generate_report(self, timeframe: str = "24h"):
"""Generate cost report"""
costs = self._query_costs(timeframe)
return {
"total_cost": costs["total"],
"cost_by_model": costs["by_model"],
"cost_by_user": costs["by_user"],
"cost_by_tool": costs["by_tool"],
"recommendations": self._generate_recommendations(costs)
}
def _generate_recommendations(self, costs):
"""Generate optimization recommendations"""
recommendations = []
# Check if GPT-4 is overused
if costs["by_model"].get("gpt-4", 0) > costs["total"] * 0.8:
recommendations.append({
"type": "model_optimization",
"message": "Consider routing simple queries to GPT-3.5-turbo",
"potential_savings": costs["by_model"]["gpt-4"] * 0.3
})
# Check for redundant tool calls
if costs["by_tool"].get("redundant_calls", 0) > 100:
recommendations.append({
"type": "caching",
"message": "Enable tool result caching",
"potential_savings": costs["by_tool"]["redundant_calls"] * 0.02
})
return recommendations
Part 7: Security & Compliance Considerations
Data Privacy Architecture
class PrivacyCompliantAgent:
"""Agent designed for regulated industries"""
def __init__(self):
self.agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=self._get_compliant_tools(),
middleware=[
PIIMiddleware(mode="redact"),
DataResidencyMiddleware(region="EU"),
AuditLoggingMiddleware(),
EncryptionMiddleware(key=os.getenv("ENCRYPTION_KEY"))
],
checkpointer=EncryptedPostgresSaver.from_conn_string(
os.getenv("DB_URL")
)
)
def _get_compliant_tools(self):
"""Tools that meet compliance requirements"""
return [
self._create_anonymized_search(),
self._create_secure_database_access(),
self._create_audit_logged_email()
]
Key Security Features
- Data Encryption: All state encrypted at rest
- PII Protection: Automatic detection and redaction
- Audit Logging: Complete trail of all operations
- Access Controls: Role-based tool access
- Data Residency: Control where data is processed
Compliance Checklist
For regulated industries (healthcare, finance, government):
✅ Data Protection
- PII/PHI detection enabled
- Encryption at rest and in transit
- Data retention policies implemented
- Right to deletion supported
✅ Audit & Governance
- Complete audit trail
- Human-in-the-loop for sensitive operations
- Version control for prompts
- Model output monitoring
✅ Security
- API key rotation
- Rate limiting
- Input validation
- Output sanitization
Part 8: Testing & Quality Assurance
Unit Testing Agents
import pytest
from unittest.mock import Mock, patch
class TestAgentBehavior:
"""Test suite for agent logic"""
@pytest.fixture
def mock_model(self):
"""Mock LLM for testing"""
model = Mock()
model.invoke.return_value = AIMessage(
content="Test response",
tool_calls=[{
"name": "search",
"args": {"query": "test"}
}]
)
return model
@pytest.fixture
def agent(self, mock_model):
"""Create agent with mocked components"""
return create_agent(
model=mock_model,
tools=[self.mock_search_tool()],
checkpointer=MemorySaver()
)
def mock_search_tool(self):
@tool
def mock_search(query: str) -> str:
"""Mock search tool"""
return f"Mock results for: {query}"
return mock_search
def test_agent_uses_tools(self, agent):
"""Test that agent correctly uses tools"""
result = agent.invoke(
{"messages": [{"role": "user", "content": "Search for AI"}]},
{"configurable": {"thread_id": "test"}}
)
# Verify tool was called
assert "Mock results" in str(result)
def test_agent_handles_errors(self, agent):
"""Test error handling"""
with patch.object(agent, 'invoke', side_effect=Exception("Test error")):
with pytest.raises(Exception):
agent.invoke({"messages": []})
Integration Testing
class TestRAGPipeline:
"""Integration tests for RAG system"""
@pytest.fixture
def rag_system(self):
"""Set up real RAG system for integration tests"""
# Use test index
return RAGSystem(index_name="test-index")
def test_end_to_end_query(self, rag_system):
"""Test complete RAG flow"""
response = rag_system.query(
"What is the return policy?",
thread_id="integration_test"
)
# Verify response quality
assert len(response) > 0
assert "return" in response.lower()
@pytest.mark.slow
def test_concurrent_queries(self, rag_system):
"""Test system under load"""
import concurrent.futures
queries = [f"Test query {i}" for i in range(100)]
with concurrent.futures.ThreadPoolExecutor(max_workers=10) as executor:
futures = [
executor.submit(
rag_system.query,
query,
f"thread_{i}"
)
for i, query in enumerate(queries)
]
results = [f.result() for f in futures]
# All queries should succeed
assert len(results) == 100
assert all(len(r) > 0 for r in results)
Evaluation Framework
from langchain.evaluation import load_evaluator
class AgentEvaluator:
"""Evaluate agent quality"""
def __init__(self):
self.criteria_evaluator = load_evaluator("criteria")
self.qa_evaluator = load_evaluator("qa")
def evaluate_helpfulness(self, query: str, response: str) -> float:
"""Evaluate response helpfulness"""
result = self.criteria_evaluator.evaluate_strings(
prediction=response,
input=query,
criteria="helpfulness"
)
return result["score"]
def evaluate_accuracy(
self,
query: str,
response: str,
reference: str
) -> float:
"""Evaluate response accuracy"""
result = self.qa_evaluator.evaluate_strings(
prediction=response,
input=query,
reference=reference
)
return result["score"]
def run_evaluation_suite(self, agent, test_cases: list):
"""Run comprehensive evaluation"""
results = []
for test_case in test_cases:
response = agent.invoke(
{"messages": [{"role": "user", "content": test_case["query"]}]},
{"configurable": {"thread_id": f"eval_{test_case['id']}"}}
)["messages"][-1].content
results.append({
"test_id": test_case["id"],
"query": test_case["query"],
"response": response,
"helpfulness": self.evaluate_helpfulness(
test_case["query"],
response
),
"accuracy": self.evaluate_accuracy(
test_case["query"],
response,
test_case["expected_answer"]
)
})
return self._generate_report(results)
Part 9: Migration Guide: 0.x → 1.x
Key Breaking Changes
1. Agent Initialization
# OLD (0.x)
from langchain.agents import initialize_agent, AgentType
from langchain.memory import ConversationBufferMemory
memory = ConversationBufferMemory()
agent = initialize_agent(
tools=tools,
llm=llm,
agent=AgentType.CHAT_CONVERSATIONAL_REACT_DESCRIPTION,
memory=memory,
verbose=True
)
result = agent.run("Hello")
# NEW (1.x)
from langchain import create_agent
from langgraph.checkpoint.sqlite import SqliteSaver
agent = create_agent(
model=llm, # Changed from 'llm' to 'model'
tools=tools,
prompt="You are a helpful assistant",
checkpointer=SqliteSaver.from_conn_string(":memory:")
)
result = agent.invoke(
{"messages": [{"role": "user", "content": "Hello"}]},
{"configurable": {"thread_id": "session_1"}}
)
2. Chain Construction
# OLD (0.x)
from langchain.chains import LLMChain
chain = LLMChain(llm=llm, prompt=prompt)
result = chain.run({"input": "test"})
# NEW (1.x) - Use LCEL
chain = prompt | llm | parser
result = chain.invoke({"input": "test"})
3. Memory Management
# OLD (0.x)
from langchain.memory import ConversationBufferMemory
memory = ConversationBufferMemory()
# NEW (1.x) - Use checkpointer
from langgraph.checkpoint.postgres import PostgresSaver
checkpointer = PostgresSaver.from_conn_string("postgresql://...")
Migration Strategy
Phase 1: Assessment (Week 1-2)
- Inventory existing 0.x implementations
- Identify deprecated features in use
- Map components to 1.x equivalents
- Estimate migration effort
Phase 2: Proof of Concept (Week 3-4)
- Migrate one agent to 1.x
- Validate functionality parity
- Measure performance differences
- Document lessons learned
Phase 3: Incremental Migration (Week 5-12)
- Migrate by component/service
- Run 0.x and 1.x in parallel
- Gradually shift traffic
- Monitor for issues
Phase 4: Deprecation (Week 13+)
- Complete cutover to 1.x
- Remove 0.x dependencies
- Update documentation
- Train team on new patterns
Part 10: Real-World Use Cases & Architectures
Use Case 1: Customer Support Agent
Requirements:
- 24/7 availability
- Access to knowledge base, order history, FAQ
- Escalation to humans when needed
- Multi-language support
Architecture:
class CustomerSupportAgent:
def __init__(self):
# Tools
@tool
def search_knowledge_base(query: str) -> str:
"""Search help articles and documentation"""
return knowledge_base.search(query)
@tool
def lookup_order(order_id: str) -> str:
"""Get order details and status"""
return order_system.get_order(order_id)
@tool
def create_ticket(issue: str, priority: str) -> str:
"""Escalate to human support"""
return ticketing_system.create(issue, priority)
# Agent with support-specific middleware
self.agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[
search_knowledge_base,
lookup_order,
create_ticket
],
prompt="""You are a helpful customer support agent.
Guidelines:
- Be empathetic and professional
- Search knowledge base before answering
- Look up order details when customer provides order ID
- Escalate complex issues to human support
- Always confirm resolution before ending conversation
""",
middleware=[
LanguageDetectionMiddleware(),
SentimentAnalysisMiddleware(),
EscalationMiddleware(threshold=0.7),
ResponseTimeMiddleware(max_seconds=10)
],
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
Results:
- 70% of queries resolved without human intervention
- Average response time: 3 seconds
- Customer satisfaction: 4.2/5
- Cost savings: $200K annually
Use Case 2: Data Analysis Assistant
Requirements:
- Query SQL databases
- Generate visualizations
- Perform statistical analysis
- Export reports
Architecture:
class DataAnalysisAgent:
def __init__(self):
@tool
def query_database(sql: str) -> str:
"""Execute SQL query and return results"""
# Validation and safety checks
if not self._is_safe_query(sql):
return "Error: Query not allowed"
return database.execute(sql)
@tool
def create_visualization(data: str, chart_type: str) -> str:
"""Generate chart from data"""
return visualization_service.create(data, chart_type)
@tool
def run_statistical_test(data: str, test_type: str) -> str:
"""Perform statistical analysis"""
return stats_service.run_test(data, test_type)
self.agent = create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[
query_database,
create_visualization,
run_statistical_test
],
prompt="""You are a data analysis expert.
When analyzing data:
1. Understand the business question
2. Query the appropriate tables
3. Perform relevant analysis
4. Create visualizations
5. Provide actionable insights
""",
middleware=[
SQLValidationMiddleware(),
DataPrivacyMiddleware(),
ResultCachingMiddleware()
],
checkpointer=PostgresSaver.from_conn_string(os.getenv("DB_URL"))
)
Use Case 3: Document Processing Pipeline
Requirements:
- Ingest documents (PDF, Word, emails)
- Extract structured data
- Classify and route
- Store in knowledge base
Architecture:
class DocumentProcessingPipeline:
def __init__(self):
# Specialized agents for different tasks
self.classifier = self._create_classifier_agent()
self.extractor = self._create_extractor_agent()
self.validator = self._create_validator_agent()
self.orchestrator = self._create_orchestrator_agent()
def _create_extractor_agent(self):
"""Agent for extracting structured data"""
return create_agent(
model=ChatOpenAI(model="gpt-4"),
tools=[ocr_tool, table_extraction_tool],
prompt="""Extract structured information from documents.
Extract:
- Key entities (names, dates, amounts)
- Tables and structured data
- Metadata
Return as JSON."""
)
def process_document(self, document_path: str):
"""Process a document through the pipeline"""
# 1. Load document
doc = self._load_document(document_path)
# 2. Classify
doc_type = self.classifier.invoke({
"messages": [{"role": "user", "content": f"Classify: {doc.text[:1000]}"}]
})
# 3. Extract based on type
extracted_data = self.extractor.invoke({
"messages": [{"role": "user", "content": f"Extract from {doc_type}: {doc.text}"}]
})
# 4. Validate
validated_data = self.validator.invoke({
"messages": [{"role": "user", "content": f"Validate: {extracted_data}"}]
})
# 5. Store
return self._store_in_knowledge_base(validated_data)
Part 11: Decision Framework
When to Use LangChain
✅ Good Fit:
- Building agents that need to use tools
- RAG applications with multiple data sources
- Complex multi-step workflows
- Need for provider flexibility
- Production deployments with observability needs
❌ Not Ideal:
- Simple prompt → completion workflows (use SDK directly)
- Real-time, ultra-low latency requirements (<100ms)
- Highly specialized, custom agent logic
- Environments with strict dependency constraints
LangChain vs. Alternatives
| Feature | LangChain | LlamaIndex | AutoGPT | Custom |
|---|---|---|---|---|
| Learning Curve | Medium | Low | High | High |
| Flexibility | High | Medium | Low | Highest |
| Production Ready | Yes (1.x) | Yes | No | Depends |
| Provider Support | 1000+ | 100+ | Limited | Manual |
| State Management | Built-in | Limited | Built-in | Manual |
| Observability | Excellent | Good | Basic | Manual |
| Best For | Agents, RAG | RAG, Search | Experiments | Custom Logic |
Part 12: Best Practices Summary
Architecture Principles
-
Start Simple, Add Complexity Gradually
# Phase 1: Basic agent agent = create_agent(model=model, tools=[search]) # Phase 2: Add middleware agent = create_agent(model=model, tools=[search], middleware=[logging]) # Phase 3: Add state management agent = create_agent(..., checkpointer=PostgresSaver(...)) # Phase 4: Multi-agent system supervisor = create_agent(..., tools=[delegate_to_specialist]) -
Design for Observability from Day One
- Enable LangSmith tracing
- Add custom metrics
- Implement health checks
- Log all errors
-
Plan for Cost Management
- Track token usage per user
- Implement budgets
- Use model routing
- Enable caching
-
Security is Not Optional
- Detect and redact PII
- Validate all inputs
- Audit all operations
- Encrypt sensitive data
-
Test Thoroughly
- Unit test agent logic
- Integration test full flows
- Load test under realistic conditions
- Evaluate output quality
Common Pitfalls to Avoid
❌ Don’t: Build without checkpointing ✅ Do: Always use a checkpointer in production
❌ Don’t: Ignore token limits ✅ Do: Implement context window management
❌ Don’t: Skip error handling ✅ Do: Handle and log all exceptions gracefully
❌ Don’t: Use GPT-4 for everything ✅ Do: Route to appropriate models based on complexity
❌ Don’t: Deploy without monitoring ✅ Do: Set up comprehensive observability
Conclusion
LangChain 1.x represents a maturation of the agent framework ecosystem. For tech leads and solution architects, it offers:
- Production-ready architecture with durable execution
- Flexible middleware system for cross-cutting concerns
- Comprehensive observability via LangSmith
- Provider agnosticism for vendor optionality
- Clear upgrade path with stable APIs
The framework is well-suited for enterprise deployments where reliability, observability, and maintainability matter as much as functionality.
Getting Started Checklist
-
Proof of Concept (Week 1-2)
- Build basic RAG agent
- Test with your data
- Measure performance
- Estimate costs
-
Production Planning (Week 3-4)
- Design architecture
- Select deployment platform
- Plan observability strategy
- Define security requirements
-
Implementation (Week 5-8)
- Build MVP with core features
- Add middleware for security
- Implement monitoring
- Load test
-
Rollout (Week 9-12)
- Deploy to staging
- Run pilot with limited users
- Monitor and optimize
- Scale to production
Additional Resources
Official Documentation:
- LangChain: https://python.langchain.com/
- LangGraph: https://langchain-ai.github.io/langgraph/
- LangSmith: https://smith.langchain.com/
Community:
- GitHub: https://github.com/langchain-ai/langchain
- Discord: https://discord.gg/langchain
- Twitter: @LangChainAI
Learning:
- LangChain Academy: https://academy.langchain.com/
- Production Best Practices: https://python.langchain.com/docs/guides/production/
- Example Applications: https://github.com/langchain-ai/langchain/tree/master/templates
About This Guide
This guide was written for technical leaders evaluating and implementing LangChain 1.x in production environments. It reflects real-world architectural patterns and operational practices from enterprise deployments.
Last Updated: December 2025
LangChain Version: 1.x
Target Audience: Tech Leads, Solution Architects, Engineering Managers
For questions, corrections, or contributions, please reach out through the LangChain community channels.
Ready to build production AI agents? Start with the simple examples in this guide, then progressively add the production features your use case requires. The modular architecture makes it easy to grow from prototype to enterprise-grade system.
Happy building! 🚀
「真诚赞赏,手留余香」
真诚赞赏,手留余香
使用微信扫描二维码完成支付
